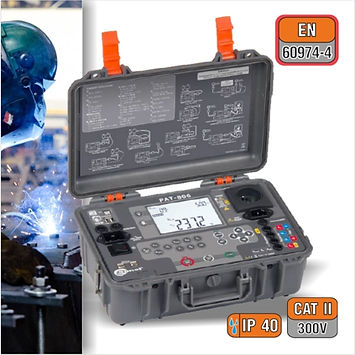

PAT-806  Portable Appliance & Welding Machine Tester
MPU-1
Software:

Sonel PAT plus software is designed for companies carrying out testing of portable electrical appliances.



It is ideal solution for big industrial companies, rent and service of electrical appliances etc. Sonel PAT plus communicates with PAT testers. All data saved in tester memory are transferred automatically to proper tables in the software.

Tests can be printed out in 4 versions:

» Test report – shows on one page all tests and all features of

   appliance.

» History of tests – shows in one table all test results. » Short

   history of tests – prints basic information about test of

   appliance.

» Summary report - sorted according to the category of

   measurement.



This option enables to add new print data on existing appliance card. Complete documentation can be also saved to PDF file. All data and test results are administered by Scheduler. For every appliance user set "Test cycle" Thanks to this function software automatically displays appliances with overdue test validity and can send email notification to the customer.

Key Features:

PAT-806 digital meters are used to measure the parameters of portable electrical equipment (power tools, white goods, etc.) which determine their

safety: resistance of protective conductors, insulation resistance, continuity of connections, leakage current, power.

Specifically the instrument is dedicated to measure the welding equipment.

  • Arc welding equipment - Part 4: Periodic inspection and testing.

  • Hand-held motor-operated electric tools. Safety. General requirements.

  • Safety of transportable motor-operated electric tools. General requirements.

  • Household and similar electrical appliances -Safety -Part 1: General requirements.



  • Safety of information technology equipment (IT Equipment).

Basic Functions:
  • measurement of parameters of arc welding machines (EN 60974-4):

      - welding machine no-load voltage measurement,

      - U voltage (peak), P

      - welding circuit leakage current measurement,

  • measurement of protective conductor resistance with the currents: 200mA, 10A, 25A ( protection class I),

  • measurement of insulation resistance – three measurement voltages: 100V, 250V and 500V

  • measurement of equivalent leakage current,

  • measurement of PE leakage current,

  • measurement of residual leakage current,

  • measurement of touch leakage current,

  • measurement of equivalent leakage current,

  • measurement of power,

  • measurement of current consumption,

  • IEC lead test,

  • fuse test,

  • check of the L-N circuit test,

  • measurement of mains voltage and frequency.

Specifications:

Electrical safety:

- insulation according to                                                       EN 61010-1 and IEC 61557

- measurement category                                                        II 300V acc.to EN 61010-1

- enclosure protection rating acc. to EN 60529:                                                       IP40

Other technical data:

- power supply................................................................................... 187...265 V, 50 Hz

- load current...................................................................................... max. 16 A (230 V)

- measurement results memory........................................................................ 990 cells

- data transmission to PC........................................................................................ USB

- dimensions:.................................................................................. 330 x 235 x 120 mm

- weight............................................................................................................... 4,75 kg

- operating temperature:................................................................................. 0...+40 °C

- storage temperature:................................................................................. -20...+70 °C

- humidity.......................................................................................................... 20...80%

.*For full Technical Specifications, please refer to PDF Data Sheet

Standard Accessories of the PAT-806:

- Power supply cord

- 1.2 m 10/25 A two-core test lead “U2/I2”

- „Crocodile” clip K03; black (2 pcs)

- Kelvin clip

- Pin probe with banana connector; black

- Test lead with banana plug; 1,2m; black (2 pcs)

- USB cable

- 0314 015.VXP 15 A 250 VAC 6.3x32 mm Littlefuse fuse (2 pcs)

- Carrying case L5

- Sonel Reader software

- Calibration certificate

Optional Accessories:

- 1.2 m 10/25 A two-core test lead “U1/I1”

- 1 kV black “crocodile” clip

- 1 kV black probe

- 1.2 m black test lead terminated with banana plugs, black

- Cord - Schuko/IEC adapter (for testing extension cords)

- 16 A three-phase socket adapter

- 16 A switched three-phase socket adapter

- 32 A three-phase socket adapter

- 32 A switched three-phase socket adapter

- 16 A industrial socket adapter

- 32 A industrial socket adapter

- IEC adapter for testing IEC cords terminated with a "Mickey Mouse" connector

- Sonel PAT software

- USB bar code reader

- Portable USB report/bar code

- Stickers with bar codes (a reel of 100 stickers)

- Permanent adhesive tape
