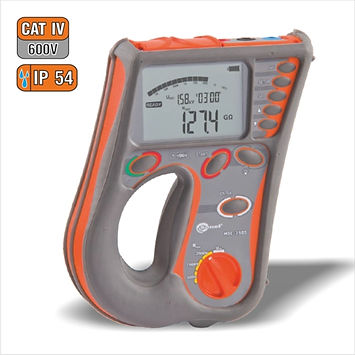

MIC-2505  Insulation Resistance Meter
MIC-2505 insulation resistance meter
Key Features:

  • Insulation resistance measurement method for two-and three-wire.

​

  • Measurement of leakage current during insulation resistance testing.

​

  • DC and AC voltage measurement in the range of 0…600 V.

​

  • Power supply from battery packs.

​

  • The instruments meet the requirements of the EN 61557 standard.

Specifications:

Electrical Safety:

type of insulation                                        double, in acc. with EN 61010-1 and IEC 61557

measurement category                                      in acc. to IV 600 V (III 1000 V) EN 61010-1

case protection rating in acc. with EN 60529                                                                 Ip54

​

Other technical specifications:

power supply of the meter .......................................... SONEL L-1 NiMH 9.6V battery pack

weight of the meter ......................................................................................... approx.1.3kg

dimensions ............................................................................................ 260 x 190 x 60 mm

display ................................................................................................LCD segment display

humidity ...............................................................................................................20%...90%

​

*For full Technical Specifications, please refer to PDF Data Sheet

Insulation resistance measurement:

- selectable measurement voltage 500, 1000 V or 2500V,

- continuous indication of measured insulation resistance or leakage

  current value,

- automatic discharge of measured object capacitive voltage after

  the completion of insulation resistance measurement,

- acoustic signaling of 5 seconds time intervals to facilitate capturing

  time characteristics,

- metered T , T and T test times for measuring two absorption

  coefficients for 15, 60 and 600 sec., 1 2 3

- indication of actual test voltage during measurement,

- protection against measuring live objects.

Standard Accessories:

  • test lead banana plug; 1,8m; 5kV; red

  • test lead banana plug; 1,8m; 5kV; blue

  • test shielded lead with banana plug; 1,8m; 5kV; black

  • USB cable

  • "crocodile" clip K02 5kV; black

  • "crocodile" clip K05 5kV; blue

  • pin probe 5kV with banana connector; red

  • carrying case L4

  • power supply adaptor Z7

  • meter harness

  • battery pack

  • calibration certificate

  • warranty card
