Cropico RM6-N Series
Introduction to the Cropico RM6-N:
-
RM6N, RM6 N2, RM6 N3 Resistance Decade Total Resistance 11.1111Megohm, Resolution 10Ohms
-

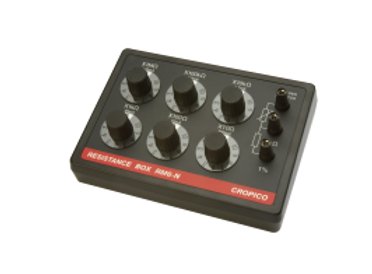

The RM6-N is a space and cost-saving 6 decade resistance box . 3 models are available covering the range 1ohm to 111.111 Megohm. An additional 1kohm resistor is available at the terminals enabling the user to make a simple divider. The RM6-N incorporates 0.6 watt thick film resistors with a specified accuracy of ±1%.
-
The RM6-Ns constitute an ideal tool for use in all electrical and electronic laboratories or workshop environment offering a wide range of values with minimum cost
Meet The Cropico RM6-N Series
RM6-N
Technical Specifications
RM6N - Decade Specifications
-
10 x 1 ohm: No
-
10 x 10 ohm: Yes
-
10 x 100 ohm: Yes
-
10 x 1 kohm: Yes
-
10 x 10 kohm: Yes
-
10 x 100 kohm: Yes
-
10 x 1 Mohm: Yes
-
10 x 10 Mohm: No
RM6-N2
Technical Specifications
RM6 N2 - Decade Specifications
-
10 x 1 ohm: Yes
-
10 x 10 ohm: Yes
-
10 x 100 ohm: Yes
-
10 x 1 kohm: Yes
-
10 x 10 kohm: Yes
-
10 x 100 kohm: Yes
-
10 x 1 Mohm: No
-
10 x 10 Mohm: No
RM6-N3
Technical Specifications
RM6 N3 - Decade Specifications
-
10 x 1 ohm: No
-
10 x 10 ohm: No
-
10 x 100 ohm: Yes
-
10 x 1 kohm: Yes
-
10 x 10 kohm: Yes
-
10 x 100 kohm: Yes
-
10 x 1 Mohm: Yes
-
10 x 10 Mohm: Yes
Technical Specifications
-
Resistance Range: 11.1111 Megohm in steps of 10 ohm
-
Maximum Continuous Working Voltage: 60V DC / 30V RMS
-
Resistors: Thick film, 0.4W at 70°C
-
Temperature Coefficient: ±100 ppm / °C
-
Terminals: Insulated, accepts 4mm banana plugs and spade tags
-
Switches:
-
Contacts: Silver-plated brass
-
Contact Resistance: 10 milliohm
-
Positive click mechanism
-
Insulation: 50,000 Mohm
-
-
Residual Resistance: <0.1 ohm
-
Case: Polished hardwood with aluminum top panel
